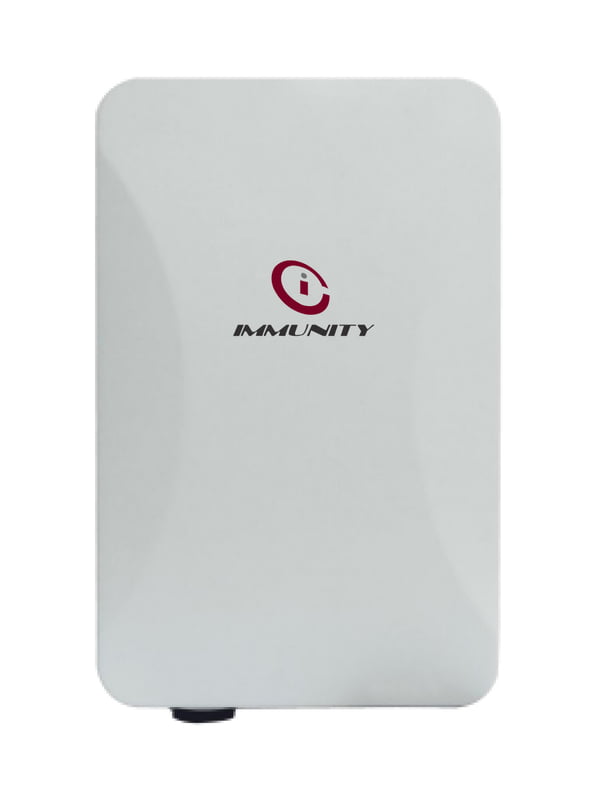

Immunity Lotus Alpha OD is an 11ax Wi-Fi6 standard MTK Chipset high power industrial Outdoor Wireless Access Point support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming.

 Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2) + 5GHz (1200Mbps 2*2), equipped Gigabit WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation, faster Ethernet data rate and more users, then multiple users can upload or download multiple packets at same time, narrower subcarrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.



Main Features:

Wireless data rate up to 1.8Gbps. 802.11ax support 1024QAM, long OFDM symbol, 160M bandwidth and 11ax 2x2 MIMO technology, the wireless data rate up to 1.8Gbps, meet with demand of high-speed applications such as VR/ AR, 4K or 8K stream media.

Advanced 1024 QAM Technology

1024-QAM Modulation Mode. 802.11ax adopt 1024-QAM modulation, which is more efficient than 802.11ac modulation, the throughput of single spatial traffic is increased by 25%.

MU-MIMO for Super Fast Speed:

DL/ UL MU-MIMO. 802.11ax support both downlink MU-MIMO and uplink MU-MIMO. It can communicate with multiple end users at the same time, greatly improving the user’s uplink transmission rate and the system’s uplink and downlink capacity, improving the efficiency of multi-user concurrent scenarios, reducing the terminal application latency.

Intelligent TWT Operation:

TWT (Target Wake-up Time). 802.11ax support TWT, allowing devices to negotiate when need to wake up, send and receive data. In additional, wireless AP can group the device into different TWT cycles, increase sleep time, reduce the device competing after wake-up, and save the device power.

Intelligent Wi-Fi Coverage:

Coverage Improvement. 802.11ax support long OFDM symbol transmission mechanism and 2MHz narrowband transmission, effectively reduced the packet loss rate and noise interference, improve the receive sensitivity and increase the Wi-Fi coverage.

Anti-Interference Control Ability:

Improvement of Anti-Interference Ability. 802.11ax support BSS color bit and dynamic CCA-SD (Clear Channel Assessment Signal Detection) threshold and power adjustment, effectively alleviates the channel interference in multi-users scenarios, improve the utilization of spectrum resources.
