Immunity Networks Access Switch 24 Gig Port 4 10Gig Uplink

Product Description

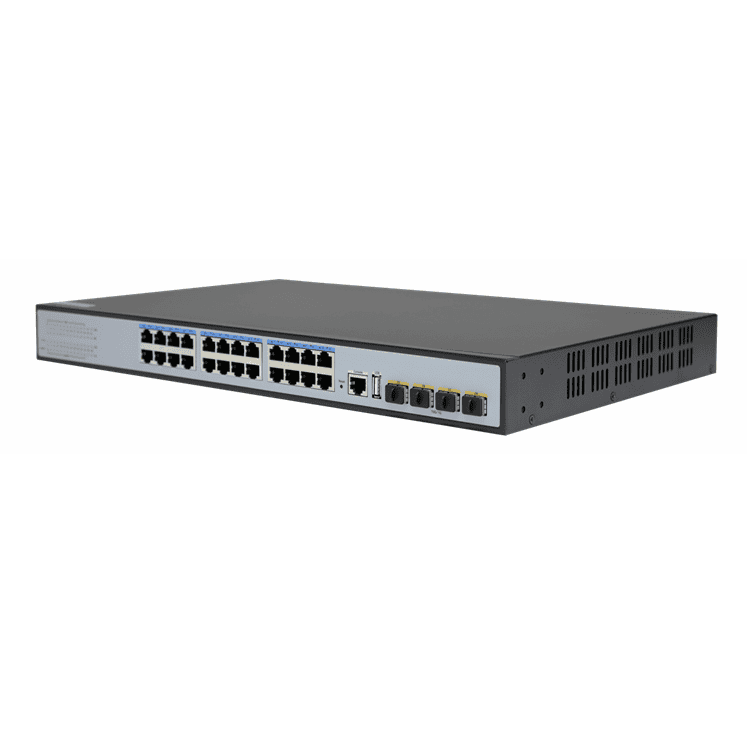

28 Port 10G Uplink 24 Port Gigabit L3 Managed Ethernet POE Switch, which provide 24*10/100/1000 adaptive POE electrical port, 4*10G SFP+ Port,1*Console port, 1*USB series port. Used the high quality high speed network IC and the most stable POE chips, POE port satisified IEEE 802.3 af/at standard, this series POE Switch can provide no gap link for 10/100/1000M ethernet, and the PoE power supply port can automatically detect and supply power to the power receiving device that meets the standard, intelligent detection of non-PoE devices does not supply power, only transmits data. Completed security control strategy and CPU protect policy improve fault tolerance, ensure stable network operation and link load balance; equipment supports automatic DoS attack prevention and SNMP, IEEE 802.1, spanning tree and rapid spanning tree protocol, link aggregation and other functions . With advanced security functions and quality of service (QoS), it can be used as core layer, distribution layer, and access layer switch with high density port and easy management, is an ideal choice for various business network applications.

Main Features

Compatible with IEEE 802.1d、IEEE 802.1w、IEEE 802.1s、IEEE 802.1p、IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3ae  standard;

L3 Management,support DHCP Server, QoS, ACL control, support SNMP V1/V2/V3, 支持 IGMP Snooping v1/v2；

Support Spanning Tree Protocol STP/RSTP/MSTP （ERPS), Support loop detection and self-healing, support remote loopback monitoring and control (802.3ah OAM);

Support multiple VLAN divisions, mac VLAN, protocol VLAN, private VLAN;

Support IP address + MAC address + VLAN + port binding, support DHCP Snooping, support IP source and DAI protection;

Support IPV4/IPV6,RIP,OSPF

Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w) power supply standards

Support PoE management, PoE watchdog

Application Environments

Metropolitan fiber broadband network: telecommunications, cable television, network system integration, etc., data network operators

Broadband private network: applicable to private networks in finance, government, petroleum, electric power, public security, education and other industries

Multimedia transmission: Image, Voice, Data transmission, for distance learning, conference television, video phones and other applications

Real-time monitoring: real-time control signal, image and data transmission at the same time
