Immunity Networks Access Switch 24 Gig Port 4 1Gig Fiber + 4 1Gig RJ 45 Uplink
Non-returnable
Tags:

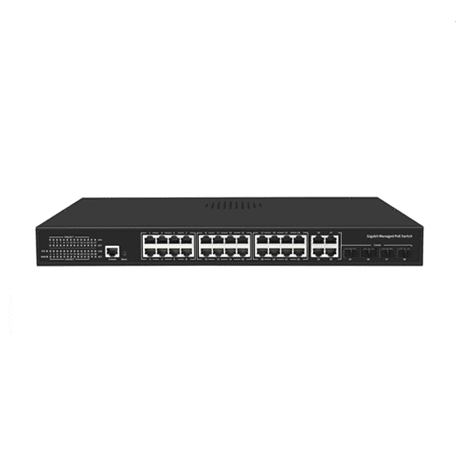

Immunity Networks L2 managed PoE switch with Dual RJ45 and Dual SFP Uplink ports.
Loaded with high-quality high-speed network IC and the most stable POE chips, the 24*10/100/1000 active POE port comply to IEEE 802.3 af/at standard. This Switch detects the PoE device and non-PoE device, automatically supplying appropriate power to PoE device that meets the PoE standard while Auto Detect Non-PoE devices and intelligently transmits data only for non-PoE device.
- Provides 24 Gb POE Ports
- 2 1Gb SPF Uplink
- 2 1Gb RJ45 Uplink
- POE Budget 300W
Choose Quantity
₹160,000.00 ₹240,000.00
Product Details
Specifications
INAS-MPOE-G32 provides 24 ports PoE switch and comply to Layer 2 management standard, support 802.1x port authentication, AAA authentication,TACACS+ authentication, support WEB, TELNET, CLI, SSH, SNMP, RMON management.
- 24 x 10/100/1000Mbps auto-sensing POE Ports, 4 x 10/100/1000Mbps Uplink Ports, 4 x Gigabit SFP ports, 1 x Console Port;
- Support IEEE802.3/IEEE802.3i/IEEE802.3uIEEE802.3ab/IEEE802.3z, IEEE802.3af/at, store-and-forward;
- Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
- Ethernet port supports 10/100/1000M adaptive and POE functions;
- Panel indicator monitoring the status and help failure analysis;
- Fanless design, Natural Cooling, 1U Rack Mount;
- Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication;
- Support WEB, TELNET, CLI, SSH, SNMP, RMON management;
- Support POE Power Management;
- Support POE Watchdog
- Surge Protection: General 6KV, Differential 2KV(level B), ESD 8KV air, 6KV contact(level C)
- Multiple management modes include CLI, web, and SNMP
- Line speed swap capacity, low jitter, low delay
- Rich L2 networking features
Power Ratings
- Input VoltageAC 100-240 V
- Power Supply52V5.76A 300W
- Product Power Maximum20W
- PoE Power maximum300W
Working Environment
- Operating temperature:-10~50°C
- Storage temperature:-40~70°C
- Operating Humidity:10%~90%, No condensation
- Storage Humidity:5%~95%, No condensation
Standards
- IEEE 802.3：Ethernet MAC ProtocolSupported
- IEEE 802.3i：10BASE-T EthernetSupported
- IEEE 802.3u：100BASE-TX Fast EthernetSupported
- IEEE 802.3ab：1000BASE-T Gigabit EthernetSupported
- IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber)Supported
- IEEE 802.3ad：Standard method for performing link aggregationSupported
- IEEE 802.3x：Flow controlSupported
- IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol)Supported
- IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)Supported
- IEEE 802.1q：VLAN Bridge OperationSupported
- IEEE 802.1x：Client/Server Access Control and Authentication ProtocolSupported
- IEEE 802.1d：STPSupported
- IEEE 802.1s：MSTPSupported
- IEEE 802.1w：RSTPSupported
- EMS: EN61000-4-2 (ESD)Supported
- EN61000-4-5 (Surge)Supported
- IEEE802.3af （15.4 W）PoE ProtocolSupported
- IEEE802.3at （30 W）PoE ProtocolSupported
Interfaces
- PoE Ports24* 10/100/1000Mbps PoE Port
- SFP Uplink Ports4*1000Mbps SFP Port
- Console Ports1* RJ45 Console Port
- RJ45 Uplink Ports4*10/100/1000Mbps RJ45 Uplink Port
Performance Capability
- Switch Bandwidth56Gbps
- Packet Forwarding Rate41.66Mpps
- Mac Address8K
- Jumbo Frame10Kbytes
- VLANMaximum 256 Active VLAN Supported
- Packet buffer4Mbit
