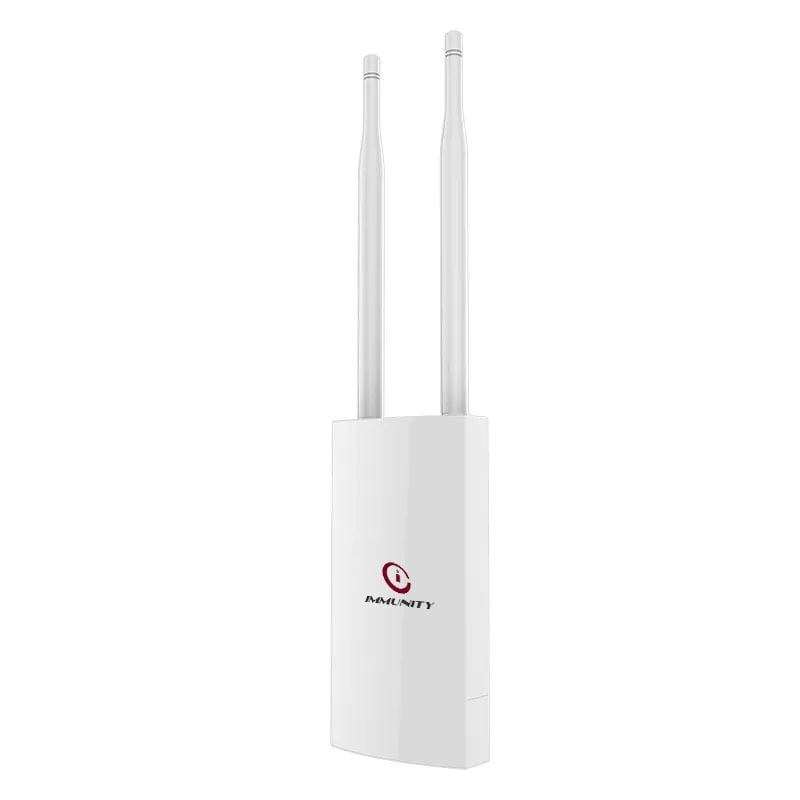

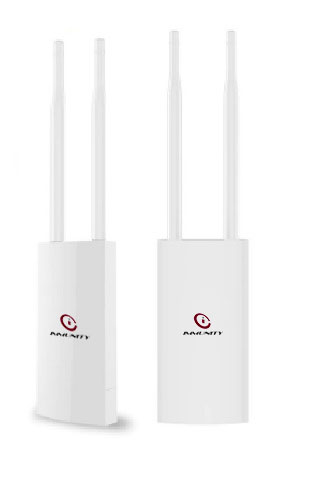

Immunity Lotus OD 1200

Non-returnable

Wi-Fi 5 11ac 1200Mbps high power Outdoor Wireless Access Point

  • 360°omnidirectional Wi-Fi coverage.
  • Dual Power Supply options supports POE Adapter.
  • 100+ Concurrent Users Support.

Choose Quantity
₹12,000.00 ₹15,000.00
+ Add to Cart+ Adding to cart
Immunity Lotus OD 1200
Immunity Lotus OD 1200
Immunity Lotus OD 1200
Immunity Lotus OD 1200
Product Details
Specifications

Immunity OD 1200 uses Qualcomm QCA9531+QCA9886 main chip, with 256 MB high-speed memory, 16 MB flash memory, providing a b data forwarding and processing capabilities. You can use it at scenic spot, community, park, school, plant area, shopping mall or villages.
Built-in Power Amplifier
Applied with SE2576L power amplifier that improves wireless network reception and transmission function. Suit for outdoor wide range coverage.
100-plus Wireless Clients Capacity
A single AP can handle 100 wireless devices concurrently and ensure stable and lag-free network experience.
Stand Up Severe Outdoor Environment
Outdoor IP66 rating provides the ability to handle different kinds of rugged surroundings.
POE Power Supply
The router supports Power over Ethernet. This solves the power supply problem in outdoor situations. Users can flexibly place devices according to the demands.


Specification:
Plug type: EU
Chip: QCA9531+QCA9886
Wireless rate: 1200Mbps
Frequency band: 2.4G+5.8G
Power amplifier: SE2576L, SKY85728-11
Recommended clients capacity: 120 sets (2.4G+5.8G)
Anttennas: 2*5dBi external antennas
Transmitting power: 500mW
Receiving sensitivity: -96dBm
Working frequency: 802.11b/g/n: 2.412GHz-2.484GHz
                                802.11ac/n/a: 5.18GHz-5.825GHz
Data rate: 2.4GHz: 300Mbps
                5GHz: 876Mbps
Physical interface: 1*10/100Mbps WAN RJ45 Ethernet ports to support POE power supply
                             1*10/100Mbps LAN RJ45 Ethernet ports to support POE power supply
                             1* RESET buttons
Indicators: Power/WAN/LAN/Wifi
Power consumption: < 13W
Protection level: IP66 grade
Item size: 35.3 * 8.5 * 4.4cm / 13.89 * 3.34 * 1.73in(L * W * H)
Package weight: 523g / 18.45oz


Software Specifications
  • Firmware
    PMWANI
Hardware Specifications
  • CPU Details
    Qualcomm
  • RAM
    256MB
  • Flash Memory
    16MB
  • MU-MIMO
    2x2
  • Antenna Count
    2
  • 2.4 Ghz Radio
    Supported
  • 5.8 Ghz Radio
    Supported
  • IP Rating
    IP67
  • Mounting Type
    Pole Mounted
  • Antenna Power
    5dbi
  • Concurrent User Count
    100
  • WAN Port
    1 x 10/100/1000 MBPS
  • LAN Port
    1 x 10/100/1000 MBPS
  • Wifi Throughput
    1200 Mbps
