Immunity OD 300 AP
Non-returnable
Tags:

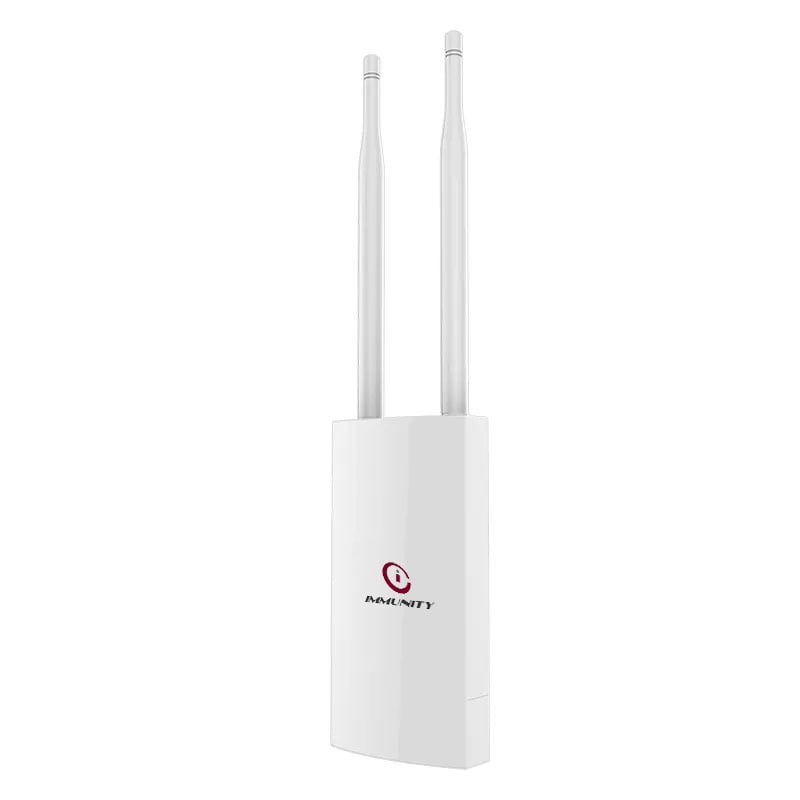

11n 300Mbps high power Outdoor Wireless Access Point
- 360°omnidirectional Wi-Fi coverage.
- Dual Power Supply options supports POE Adapter.
- 50+ Concurrent Users Support.
- 360°omnidirectional Wi-Fi coverage.
- Dual Power Supply options supports POE Adapter.
- 50+ Concurrent Users Support.
Choose Quantity
₹7,500.00 ₹10,000.00
Product Details
Specifications
Immunity OD 300 uses Qualcomm QCA9531 main chip, with 64 MB high-speed memory, 16 MB flash memory, providing a b data forwarding and processing capabilities. You can use it at scenic spot, community, park, school, plant area, shopping mall or villages.
Built-in Power Amplifier
Applied with SE2576L power amplifier that improves wireless network reception and transmission function. Suit for outdoor wide range coverage.
50-plus Wireless Clients Capacity
A single AP can handle 50 wireless devices concurrently and ensure stable and lag-free network experience.
Stand Up Severe Outdoor Environment
Outdoor IP66 rating provides the ability to handle different kinds of rugged surroundings.
POE Power Supply
The router supports Power over Ethernet. This solves the power supply problem in outdoor situations. Users can flexibly place devices according to the demands.
Built-in Power Amplifier
Applied with SE2576L power amplifier that improves wireless network reception and transmission function. Suit for outdoor wide range coverage.
50-plus Wireless Clients Capacity
A single AP can handle 50 wireless devices concurrently and ensure stable and lag-free network experience.
Stand Up Severe Outdoor Environment
Outdoor IP66 rating provides the ability to handle different kinds of rugged surroundings.
POE Power Supply
The router supports Power over Ethernet. This solves the power supply problem in outdoor situations. Users can flexibly place devices according to the demands.
Plug type: EU
Wireless rate: 300Mbps
Frequency band: 2.4GHz
Power amplifier: SE2576L
DDR: 64MB
Flash: 16MB
PA chip: SE2576L*2
Antennas: 2 * 5dBi external antennas
Antennas standard: IEEE802.11b/g/n
Transmitting power: 500mW
Receiving sensitivity: -96dBm
Working frequency: 802.11b/g/n: 2.412GHz-2.484GHz
Data rate: 11b: 1,2,5.5,11Mbps
11g: 6,9,12,18,24,36,48,54Mbps
11n: MCS0-MCS15 (20MHz and 40MHz analog broadband)
20MHz: 144.4Mbps
40MHz: 300Mbps
Physical interface: 1*10/100Mbps WAN RJ45 Ethernet ports to support POE power supply
1*10/100Mbps LAN RJ45 Ethernet ports to support POE power supply
1* RESET reset buttons
Power consumption: < 8W
Protection level: IP66 grade
Recommended clients capacity: 50 sets (2.4GHz)
Software Specifications
- FirmwarePMWANI
Hardware Specifications
- CPU DetailsQualcomm
- RAM64MB
- Flash Memory16MB
- MU-MIMONA
- Antenna Count2
- 2.4 Ghz RadioSupported on Dual Antenna
- 5.8 Ghz RadioNA
- IP RatingIP66
- Mounting TypeWall Mounted
- Antenna Power5dbi
- Concurrent User Count60
- WAN Port1 x 10/100 MBPS
- LAN Port1 x 10/100 MBPS
- Wifi Throughput300 Mbps
